EU EN 50620, IEC62893 standard Type 2 and CCS2 EV charging cable
Reference Standard：prEN 50620、IEC62893
Certificate No.:6003773.01
Product description:

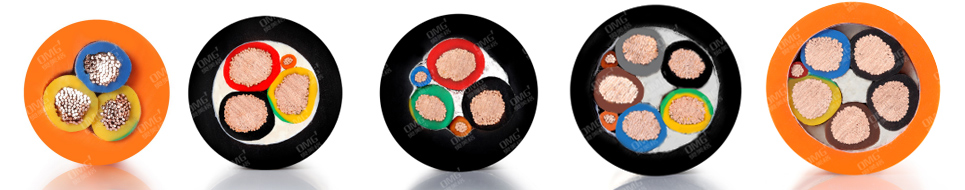

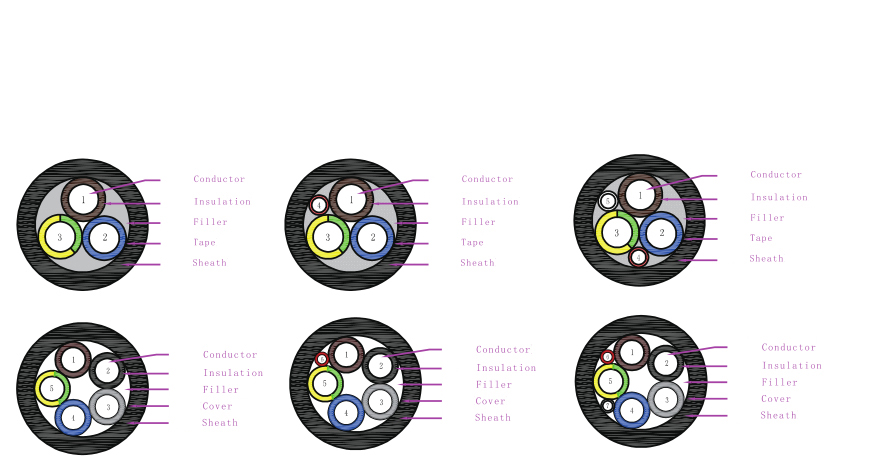

| Construction | Features |
| 1.Conductor | Rated temperature ：-40℃～90℃ |
| Material: Bare Copper | Rated Voltage ： AC 300/500V、 450/750V；DC 1000V |
| 2.Insulation | Flame Test ：VW-1 Test method Comply with UL 2556 |
| Material: ERP | Min： Bending Radius: ≥6*OD |
| Color： Brown，Blue，Yellow/Green | Dielectric Voltage： 2.5kVac/15min. No Breakdown |
| 3.Filler | Low temperature impact ：-40℃, No cracks |
| Material: PP Cord | Hot Shock：150℃/1h No cracks |
| 4.Tape | Oil Resistance ：IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| Material:Non-woven fabrics | Crush resistance：Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN; |
| 5.Sheath | Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100% |
| Material: TPU | Environmental Requirements：Compliant with RoHS and REACH |
| Color: Black （customizable） | |
Product number |
specification |
Conductor twisted outer diameter |
Conductor resistance |
Reference allowable current |
Unshielded Complete outer diameter |
Cable packaging |
H05BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.6~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
9.8~10.8 |
800m/700# |
|
H07BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.8~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
10~10.8 |
800m/700# |
|
3×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
35A |
11.5 |
500m/700# |
|
3×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
44A |
13.2 |
400m/800# |
|
3×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
62A |
16.3 |
500m/950# |
|
3×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
82A |
19 |
500m/700# |
|
5×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
20A |
13.5 |
500m/950# |
|
5×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
30A |
15 |
400m/950# |
|
5×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
38A |
16.8 |
300m/950# |
|
5×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
54A |
20 |
300m/1200# |
|
5×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
71A |
23.5 |
800m/700# |
|
5×25mm2+(0～2)×(0.5～0.75)mm2 |
7.2 |
0.78 |
94A |
29 |
800m/700# |
|
5×35mm2+(0～2)×(0.5～0.75)mm2 |
8.4 |
0.554 |
117A |
32.8 |
500m/700# |
The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
