UL758 HV Cable

UL758 EV high voltage cable product specification.

(Reference standard: UL 758、UL3820UL3886UL30088)

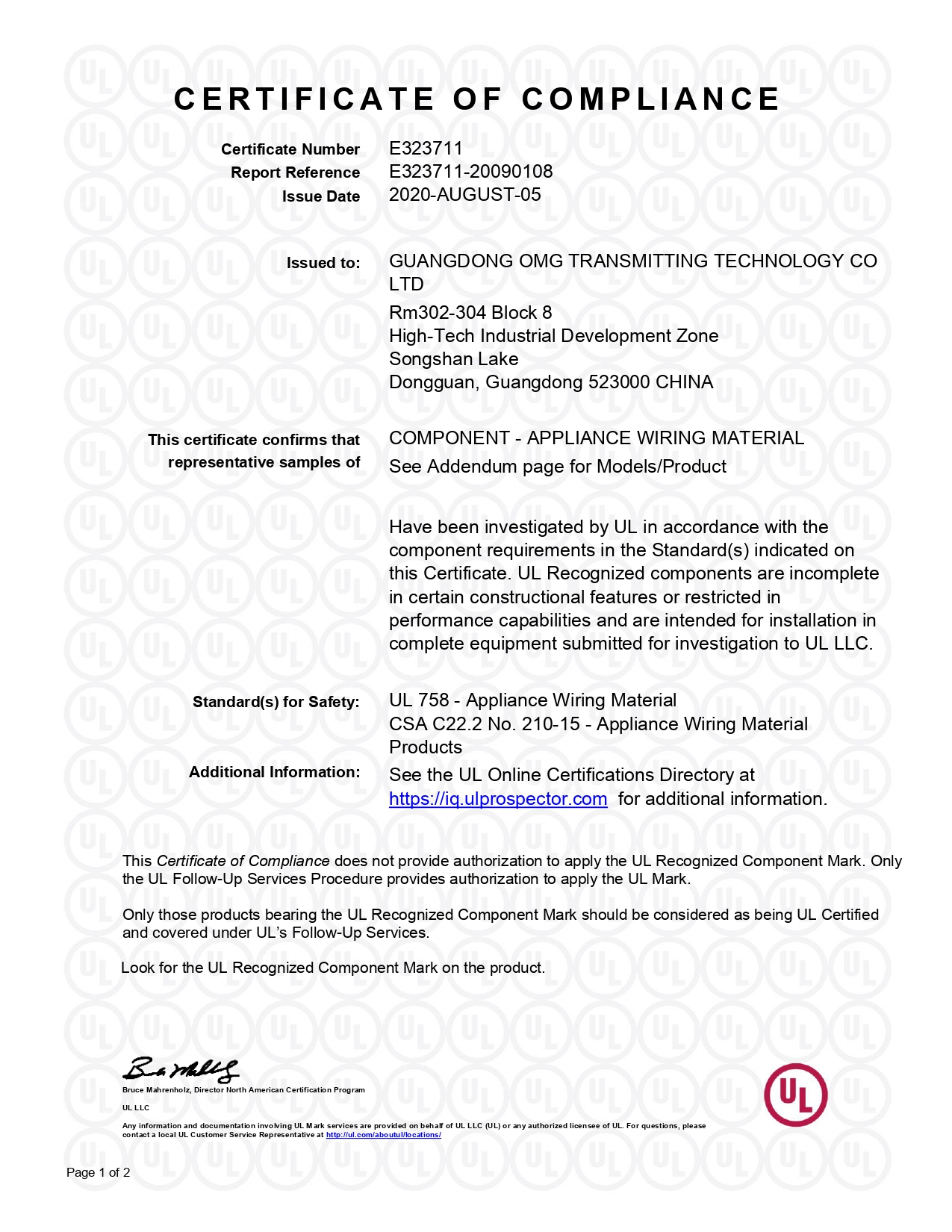

Certificate number: E323711

 Construction  Features
 1、Conductor1  1、Rated Temperature: -40℃-+125℃
      Material: Bare Copper  2、Rated Voltage:Optional 1000V AC or 1500V AC
 2、Insulation  3、Aging:158℃*168h,comply with UL 758
      Material: XLPE  4、Dielectric Voltage:3000V AC*1min
      Color:Orange  5、Deformation Test: 121℃*4h,comply with UL 758
 3、Shielded  6、Flame Test:  VW-1,comply with UL 758
      Material:Tinned Copper    7、Cold Bend Test:-40℃*4h,comply with UL 758
 4、Sheath  8、Environmental Requirements:    Compliant with RoHS 2.0 and REACH
      Material: XLPE  9、Anti-tear Performance :>20N/mm
      Color:Orange   10、Min Bending Radius:    4*OD

OMG UL758 EV high voltage cable

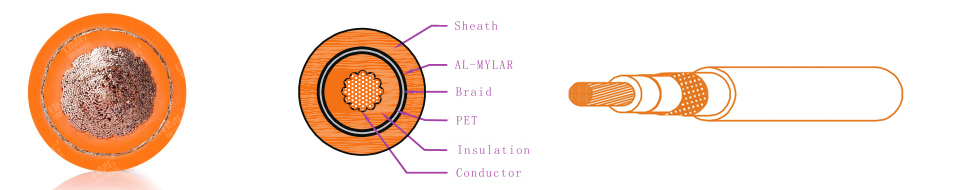

Single core shielded cable(UL758 EV high voltage cable)

UL758 EV high voltage cable product specification.

Product Series

Size

Conductor Stranded OD mm ( Ref.)

Max. Conductor resistance

mΩ/m@20

Permissible ampacity

A (Ref.)

Over diameter

mm (Ref.)

UL 30088 for 1000V

16AWG

1.5

14.1

15

5.6

15AWG

1.7

11.2

20

5.7

14AWG

1.9

8.88

24

5.8

13AWG

2.1

7.02

28

5.8

12AWG

2.8

5.58

34

6.7

11AWG

3.0

4.43

39

6.9

10AWG

3.3

3.51

45

7.2

9AWG

3.7

2.78

53

7.6

8AWG

4.2

2.23

64

8.8

7AWG

4.8

1.77

75

9.4

6AWG

5.4

1.40

85

10.0

5AWG

6.0

1.11

100

12.1

4AWG

6.6

0.882

115

12.2

3AWG

7.4

0.7

135

13.0

2AWG

8.4

0.555

160

13.6

1AWG

9.4

0.44

175

15.0

The specification, size, structure of above product may be changed  due toTechnical progress, similar specifications are available according to customer’s  requirements

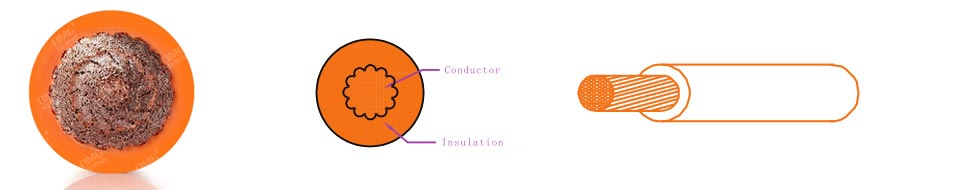

Single core unshielded cable(UL758 EV high voltage cable)Optional 1000V or 1500V

UL758 Single core unshielded cable

Product Series

Size

Conductor Stranded OD mm ( Ref.)

Max. Conductor resistance

mΩ/m@20

Permissible ampacity

A (Ref.)

Over diameter

mm (Ref.)

UL 3820 for 1000V  or   UL 3886 for 1500V

16AWG

1.5

14.1

15

3.4

15AWG

1.7

11.2

20

3.5

14AWG

1.9

8.88

24

3.6

13AWG

2.1

7.02

28

3.8

12AWG

2.8

5.58

34

4.5

11AWG

3.0

4.43

39

4.7

10AWG

3.3

3.51

45

5.0

9AWG

3.7

2.78

53

5.4

8AWG

4.2

2.23

64

6.6

7AWG

4.8

1.77

75

7.2

6AWG

5.4

1.40

85

7.8

5AWG

6.0

1.11

100

8.4

4AWG

6.6

0.882

115

9.0

3AWG

7.4

0.7

135

9.4

2AWG

8.4

0.555

160

10.8

1AWG

9.4

0.44

175

12.4

The specification, size, structure of above product may be changed  due toTechnical progress, similar specifications are available according to customer’s  requirements
