PSE charging cable

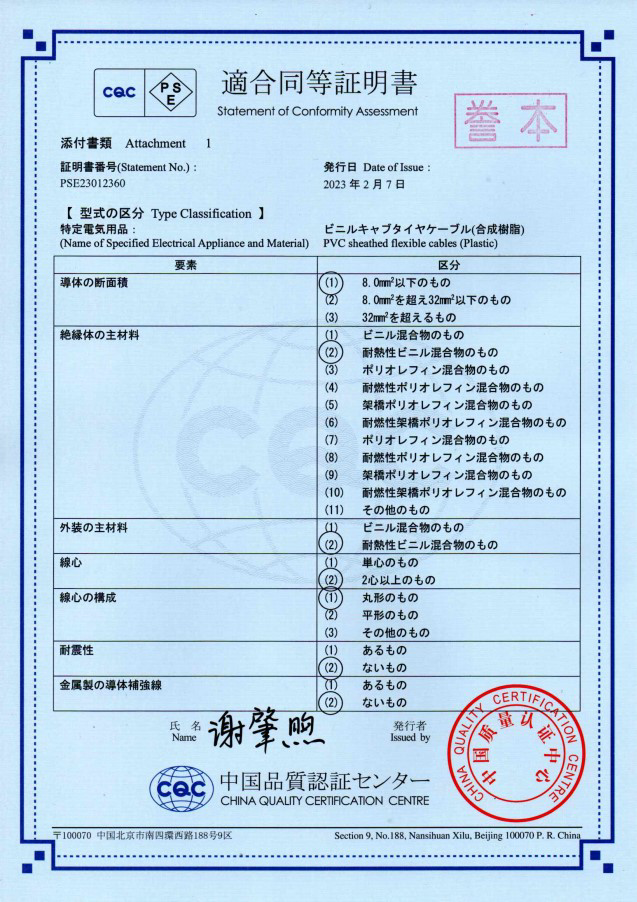

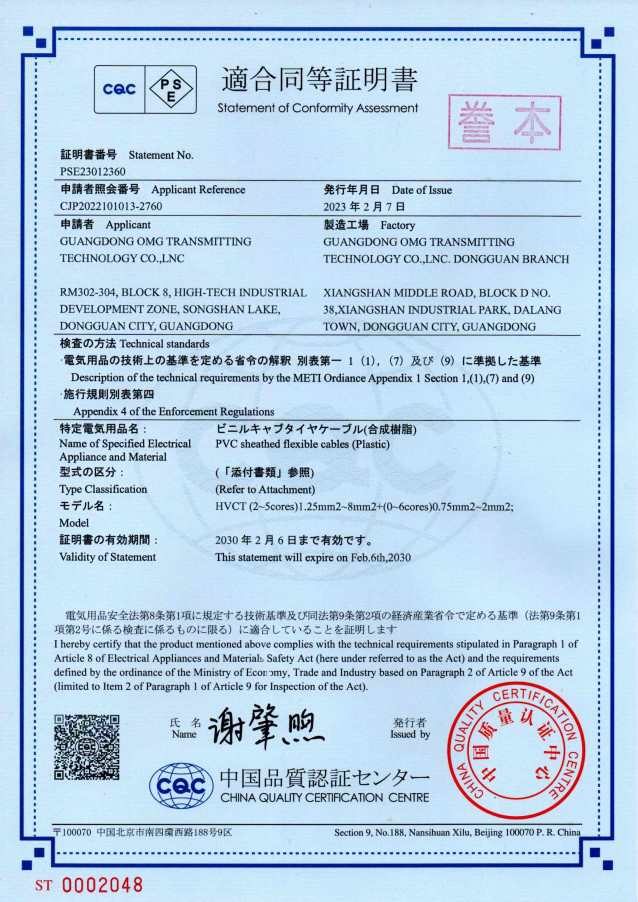

Japan PSE certified HVCT type electric vehicle charging cable

Reference Standard:JIS C 3312

Product description:

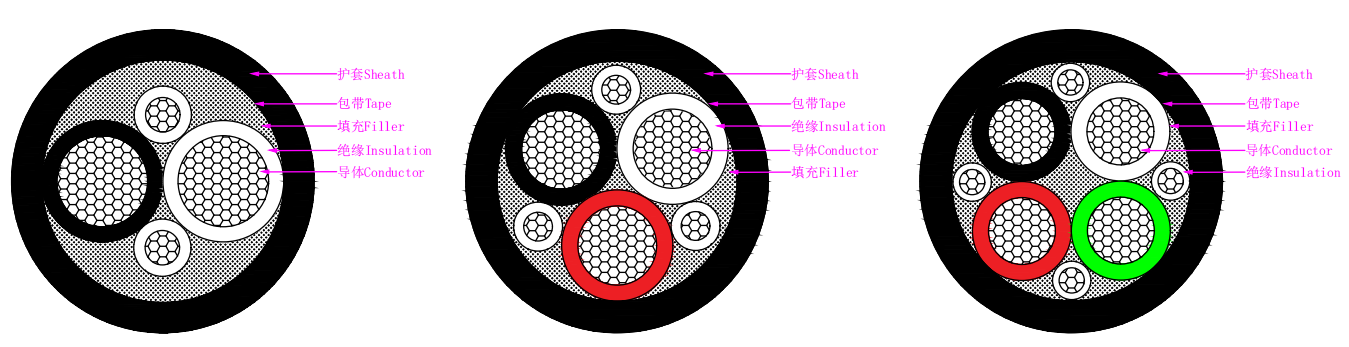

 Construction  Features
 1.Conductor  Ambient Temperature :-40℃~90℃
 Material: Bare Copper  Rated Voltage : ≤600V AC , ≤750V DC
 2.Insulation  Tensile Strength :Insulation>10MPa,after Aging Test(100℃*48H)>85%
 Material: PVC                  Sheath>10MPa,after Aging Test(100℃*48H)>85%
 Color:Black, White, Red, Green       Elongation at break : Insulation>100%,after Aging Test(100℃*48H)>80%
 3.Filler                  Sheath>120%,after Aging Test(100℃*48H)>80%
 Material: PP linen yarn or cotton yarn   Thermal Deformation :Thickness reduction <50%
 4.Tape  Bending Radius :≥6 OD
 Material:Non-woven fabrics  Flame Retardant Test:Naturally extinguished within 30 seconds
 5.Sheath  The flame must be extinguished naturally within 30s
 Material: PVC
 Color: Black

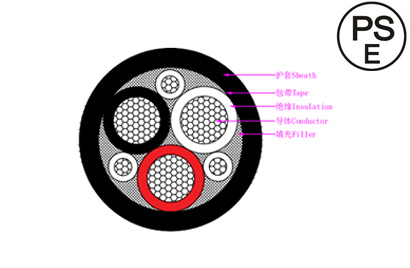

Japan PSE EV charging cable

Specification range:HVCT (2~5cores)1.25mm2~8mm2+(0~6cores)0.75mm2~2mm2



OMG Japan PSE EV charging cable
