EV High-Voltage Cable
-
EV Charging cable
IEC62893 DC cable

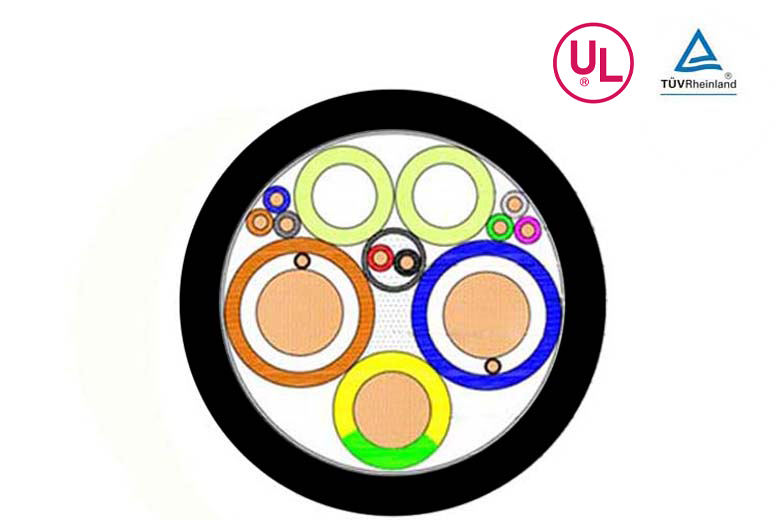

IEC62893 DC charging cable (Suitable for CCS 2)
TUV certified DC charging cable
Reference Standard ：IEC62893-4-1:2020
Certificate number R 50438281 0001
Product description

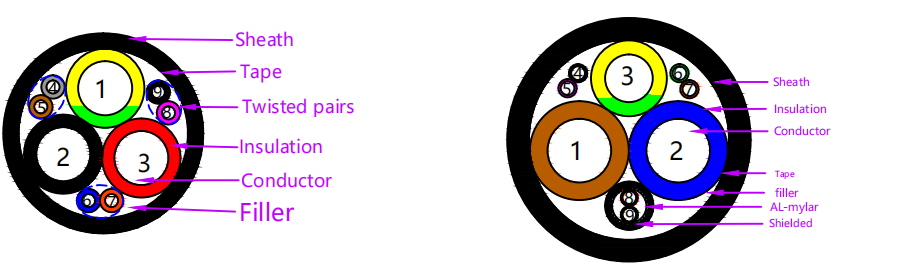

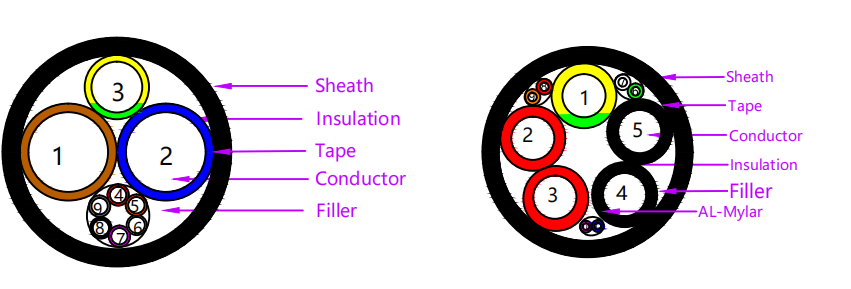

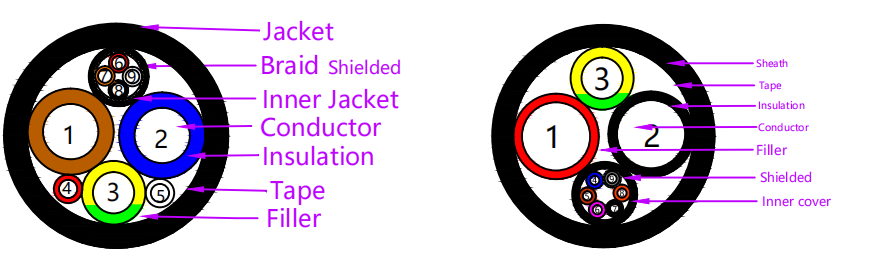

| Construction | Features |
| 1.Conductor | Rated temperature ：-40℃～90℃ |
| Material: Bare Copper | Rated Voltage: DC1500V |
| 2.Insulation | Flame Test:Testing method according to EN60332-1-2 |
| Material：EVI-2 | Bending Radius:≥6*OD |
| Color: Yellow/Green，Blue，Brown、Black、Gray | Dielectric Voltage:2.5kVAC for main core，2.0kV AC for CC/CP |
| 3.Filler | Low temperature impact:-40℃No cracks |
| Material：PP or cotton yarn | Hot Shock:150℃/1h No cracks |
| 4.Tape | Oil Resistance:IRM 902 100℃168h Tensile Strength Variation<±40%， |
| Material：Non-woven fabric | Elongation Variation<±30% |
| 5.Sheath | Crush resistance:Sq≤4crush force ≥4KN;4≤Sq≤35 crush force≥11KN |
| Material：TPU | Resistance to Acid and alkali:168hTensile Strength Variation≤30% Elongation ≥100% Environmental Requirements:Compliant |
| Color: Any color | with RoHS2.0 and REACH |
| Product number | Specification | Conductor twisted outer diameter |
Conductor resistance |
Reference allowable current |
Unshielded Complete outer diameter |
cable packaging |
| 62893 IEC 126 | 2×10+10+P(2×0.75)+4×0.5 | 4.5 | 1.91 | 40A | 15.5 | 300m/950# |
| 2×16+16+P(2×0.75)+4×0.5 | 5.7 | 1.21 | 63A | 18 | 300m/950# | |
| 2×25+16+P(2×0.75)+4×0.5 | 7.1 | 0.78 | 100A | 24.5 | 300m/950# | |
| 2×35+16+P(2×0.75)+4×0.5 | 8.4 | 0.554 | 125A | 25.8 | 300m/950# | |
| 2×50+25+P(2×0.75)+4×0.5 | 10.2 | 0.386 | 150A/200A | 30.2 | 400m/1200# | |
| 2×70+35+P(2×0.75)+4×0.5 | 12.0 | 0.272 | 200A/250A | 34.7 | 400m/1200# | |
| 4×50+50+6×0.75 | 10.0 | 0.386 | 300A/350A | 38.5 | 300m/1200# | |
| 4×60+70+6×0.75 | 11.0 | 0.319 | 350A/400A | 43.5 | 300m/1200# | |
Specififications for 2-core power cable 4mm² ~ 95mm² or 4-core power cable 50mm² ~ 260mm², 1-core PE cable 4mm ~ 70mm, auxiliary power cable 2-cores 2.5 ~ 6.0mm (optional) can be added 0 ~ 12 cores 0.5mm ~ 1.0mm signal cable, the signal cable can be shielded or full cable shielding, the specifific parameters to the product technical drawings shall prevail Specifific parameters are subject to the technical drawings. |
||||||
